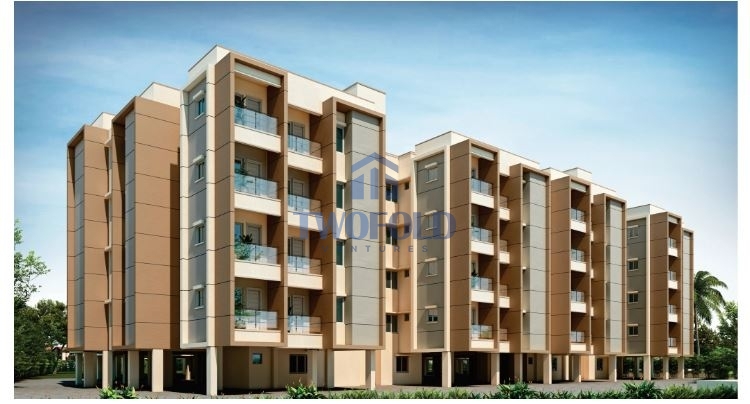

DRA URBANIA - Avadi, Chennai
RERA: TN/02/Building/0400/2022 dated 10.10.2022 (www.rera.tn.gov.in)
Total Units: 160 Apartments
Number of Blocks: 2
No of Floors: Stilt + 4 Floors
No of Units / Floor:
Block 3
Wing 3A - 9 Units, Wing 3B - 4 Units, Wing 3C - 8 Units
Wing 3D - 5 Units, Wing 3E - 5 Units
Block 4
Wing 4A - 4 Units, Wing 4B - 5 Units
Apartment Types & Sizes:
2BHK + 2T: 763 Sq.ft. to 1005 Sq.ft
3BHK + 2T: 1001 Sq.ft. to 1305 Sq.ft.,
3BHK + 3T: 1248 Sq.ft. to 1349 Sq.ft.

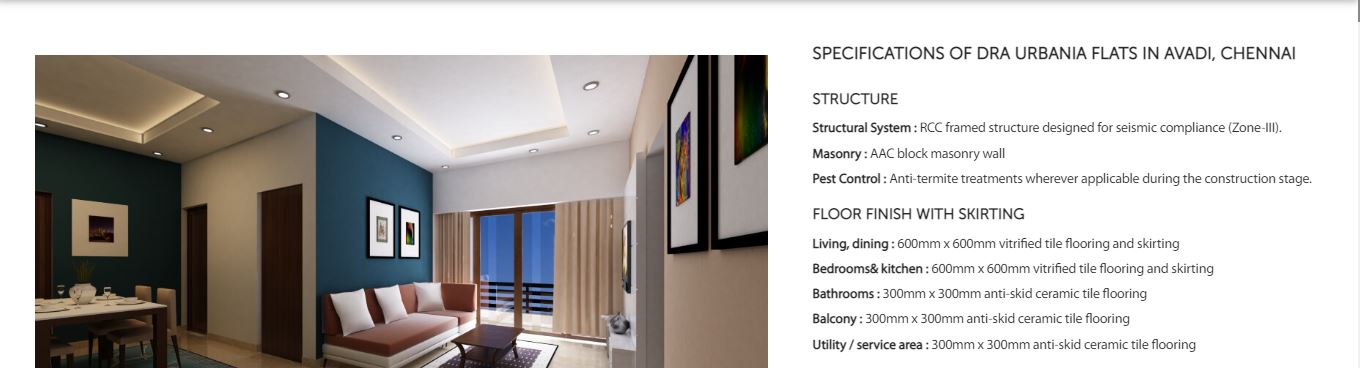

SPECIFICATIONS OF DRA URBANIA FLATS IN AVADI, CHENNAI
STRUCTURE
Structural System : RCC framed structure designed for seismic compliance (Zone-III).
Masonry : AAC block masonry wall
Pest Control : Anti-termite treatments wherever applicable during the construction stage.
Living, dining : 600mm x 600mm vitrified tile flooring and skirting
Bedrooms& kitchen : 600mm x 600mm vitrified tile flooring and skirting
Bathrooms : 300mm x 300mm anti-skid ceramic tile flooring
Balcony : 300mm x 300mm anti-skid ceramic tile flooring
Utility / service area : 300mm x 300mm anti-skid ceramic tile flooring
Internal walls : Two coats of acrylic emulsion over one coat primer and two coats of wall putty
Ceiling : Two coats of acrylic emulsion over one coat primer and two coats of wall putty
Exterior walls : Plaster finish with weather proof texture paint or weather proof emulsion paint as decided by the architect
Bathrooms : 300mm x 450mm Glazed ceramic wall tiles up to 7'-0" height
Kitchen : Glazed ceramic wall tile 2'-0" above the kitchen counter
Utility : Glazed ceramic wall tile up to 3'-0"
Kitchen platform : Platform with granite counter slab 2'-0" wide at height of 800mm from the finished floor level.
Kitchen sink : Stainless steel single bowl sink without drain board and sink faucet of Hindware / Parryware or equivalent
Electrical point : Provision for exhaust & water purifier
Utility area : Provision for washing machine
BATHROOMS
Sanitary fixture : Wall mounted European Water Closet (EWC) of Hindware / Parryware or equivalent will be provided with concealed cistern.
Cp fitting : Health faucet, pillar cock, wall mixer, overhead shower Hindware / Parryware or equivalent
Drain : SS square designed gratings will be provided
False ceiling : Grid type false ceiling will be provided above 7'-0" height(easy maintenance of plumbing lines & geysers)
Main doors : Pre-engineered veneer finish flush door with ironmongery like door lock, tower bolt, door viewer, magnetic catcher in SS finish will be provided.
Bedroom doors : Pre-engineered laminate finish flush door with ironmongery like door lock, tower bolt, magnetic catcher in SS finish will be provided.
Bathroom doors : Pre-engineered laminate finish flush door with ironmongery like thumb turn lock and a latch will be provided
Windows : UPVC sliding windows with bug mesh will be provided inside the apartments (except openable windows & bug mesh protects you from the menace of mosquitoes) - (U)
French doors : UPVC frame and sliding door with see through glass
Ventilators : UPVC frame of fixed or adjustable louvered or openable shutter for ODU access
MS Grill : MS safety grills will be provided all the sliding windows inside the apartment
Balcony handrails : MS handrail will be provided as per architect design
Water proofing : Water proofing will be done the water retain area like lift pit, toilet, balcony & utility / service area, UG sump, STP & OHT
Power Supply : 3 Phase connection for each apartment
Power back-up : 350 watts for 2BHK, 500 watts for 2.5BHK & 3BHK through Automatic Changeover Current & Limiter (ACCL). (Instead of pre-designed use of electrical light points during power cut flexibility to use the lighting circuit of choice within the allotted power capacity).
Safety device : RCCB safety device will be provided for each apartment (protection against voltage fluctuations, earth fault as well as any leakage current)
Switches & sockets : Modular Switches and sockets will be of Anchor Roma / L & T or equivalent
Wires : Fire Retardant Low Smoke (FRLS) copper wire of a quality ISI brand
TV : Provision for TV in living and master bedroom with pre-wired co-axial cable for DTH easy connectivity
Data : Provision for fibre optical cabling in living
Air-conditioner : Split air-conditioner provision will be provided living/dining and all the bedrooms. Pre - installed conduit provided as provision for A/C (Easy for fixing your air-conditioner without calling technicians to drill the walls)
Exhaust fan : Exhaust fan provision for all the toilet
Geyser : Geyser provision for all the toilets
Water supply : Hydro pneumatic Pressure System (Provides water at constant pressure in all apartment irrespective of the floor vis-à-vis traditional overhead tank) - (U)
Internal : All internal plumbing line are CPVC
External : All external plumbing lines are UPVC / PVC pipes
Drainage : All drainage plumbing lines are PVC pipes
Power back-up : 100% power back-up for common areas
Lift : 2elevators of13 passenger stretcher lift
Lift facia : Granite or panel cladding will be provided
Lobby & corridor : Ground floor lobby finished with granite flooring with gypsum false ceiling. All the corridors will be finished with tile flooring with matching skirting.
Painting will be two coats of acrylic emulsion over one coat primer
Staircase : Rustic tile flooring and painting will two coats of acrylic emulsion over one coat primer
Staircase handrail : MS handrail with enamel paint for all the floors
Stilt & Upper Stilt : Granolith cement flooring with car park numbering and painting will be two coats of acrylic emulsion over one coat primer
Terrace floor : Weathering course with pressed clay tile finishing
Driveway : Well defined driveway with interlocking paver block laid all-round the building, demarcation of driveway, convex mirror, driveway lighting, speed breakers for safe turning in driveway
Rain water harvest : Adequate rain water harvesting pit will be provided at site
STP : Centralized sewage treatment plant will be provided
Safety : CCTV surveillance cameras will be provided at entry and exit, stilt lobby & driveway
Security : Security cabin will be provided at the entrance
Compound wall : Building perimeter fenced by the compound wall with grand entry gates for a height as per architect / landscape design
Landscape : Adequate landscape will be provided as per the landscaping consultant
Signages : Apartment owners name board will be provided in the stilt floor
| Unit Type | Saleable Area | RERA Carpet Area | Price | Floor Plans |
|---|---|---|---|---|

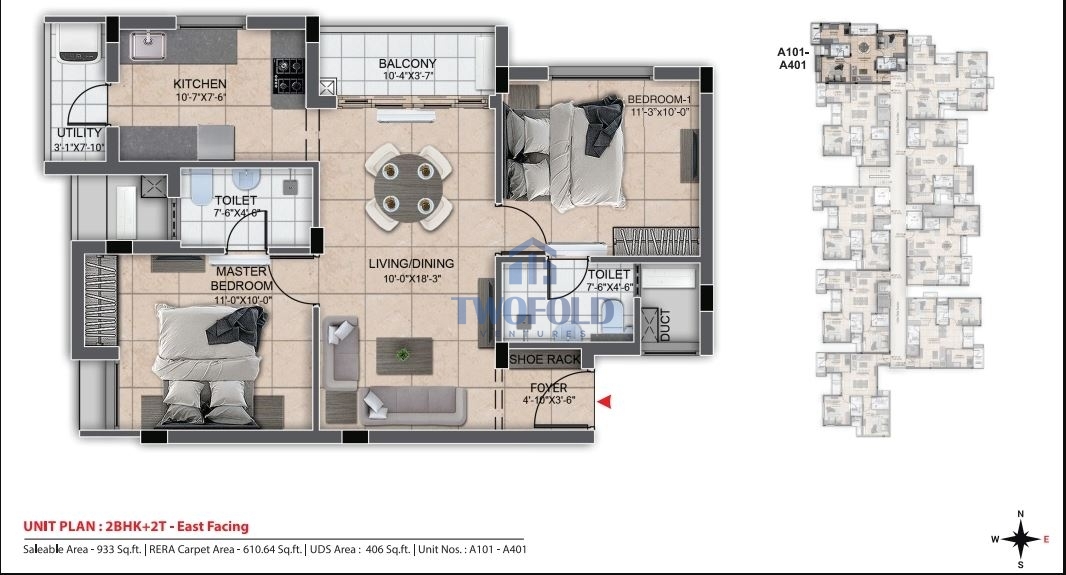

| 2BHK | 933 Sq.Ft | 610.64 Sq.Ft | View Price | View |
| 3BHK | 1349 Sq.Ft | 902.02 Sq.Ft | View Price | View |
